TV Troubleshooting Guide

If your TV does not function as expected, please, proceed as follows:

Check whether the Sony (standby) indicator is flashing in red.

  • When it is flashing

    The self-diagnosis function is activated.

    1. Count how many times Sony (standby) indicator flashes between each two second break. For example, the indicator flashes three times, then there is a two second break, followed by another three flashes,etc.
    2. Press Sony on the top edge of the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service center of how the indicator flashes (number of flashes). In this case, please contact Sony.

  • When it is not flashing

    1. Check the items in the tables below.
    2. If the problem still persists, have your TV serviced by qualified service personnel. Please contact Sony for more information.





  • Picture
  • Sound
  • Channels
  • Other
     Sound

Simply click one of the list items to display the related information.

There is no picture (screen is dark) and no sound.
  • Check the antenna/cable connection.
  • Connect the TV to the AC power, and pressSony on the TV.
  • If the Sony(standby) indicator lights up in red, press Sony .
No picture or menu information from equipment connected to the video input jack appears on the screen.
  • Press Sony or Sony (depending on your remote) to display the list of inputs, then select the desired input.
  • Check the connection between the optional equipment and the TV.
Double images or ghosting (only in analogue mode).
  • Check the aerial/cable connection.
  • Check the aerial location and direction.
Picture and sound noise when viewing a TV channel (only in analogue mode).
  • Adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception.
Some tiny black points and/or bright points appear on the screen.
  • Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
No colour on programmes.
  • Reset all picture settings from the “Picture” menu.
No colour or irregular colour when viewing a signal from the Sony COMPONENT IN sockets.
  • Check the connection of the Sony COMPONENT IN sockets and check if each sockets are firmly seated in their respective sockets.
Picture freezes or contains blocks on the screen.
  • Check signal level. Digital Setup => Technical Set-up => System Information. If the signal bar is red (no signal) or amber (low signal), check the aerial/cable connection.
  • Remove the connected USB device. It can be damaged or not supported by the TV. Check the following page for updated information about compatible USB devices here.
Distorted picture and/or sound.
  • Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.
  • When installing optional equipment, leave some space between the optional equipment and the TV.
  • Check the aerial/cable connection.
  • Keep the aerial/cable TV cable away from other connecting cables.
Only snow and noise appear on the screen (only in analogue mode).
  • Check if the aerial is broken or bent.
  • Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Poor image: colour, granular noise, blocks and other artefacts, image flickering.
The image is generated from a standard DVD player (no DivX or Xvid).

  • DVD's are standard definition video sources. Number of lines output is 576 lines, whereas your HD TV set has 720 or 1080 lines. This difference may result in a poorer image. However some DVD players are able to “upscale” picture to obtain a very good picture. Check if your DVD player has the following connectors: YUV, DVI or HDMI. For more information, refer to the instruction manual of your DVD player.

  • Some HDMI or DVI featured DVD players also have an internal processor that can upscale pictures from a DVD to 720 or 1080 lines to provide an excellent picture from a standard definition disc to your HD TV set. Those settings are available from the setup menu of your DVD player. Please refer to the instruction manual of your DVD player.

  • If your DVD player does not have those connectors and only has a SCART connector, or S-VIDEO, or composite, there is not much to do to improve the picture quality. Just make sure that you are not using the cheapest cables and that the picture settings of your TV set are correctly adjusted.

  • Some high end TV sets have a picture improvement engine that can soften a noisy image. Make sure that it is activated from the setup menu of your TV set. Please refer to the instruction manual of your TV set.

  • If people and objects have weird white outlines around them. This may suggest that your TV sharpness is set too high. Make the correct sharpness adjustments from the setup menu of your TV set.

  • Make sure you use good quality cables and that your cables are not too long (less than 5 meters long).

The image is generated from a Blu-ray disc player or a Playstation 3.

  • Make sure that you have selected the correct video format from the remote control. You may have inadvertently touched this button. In this case the resolution is lowered resulting in a poor image quality. Press this button again several times until the resolution is correct.

  • First make sure that your Blu-ray disc player is connected via the HDMI output to your HD TV set. If it is connected to YUV, it is most likely that the signal is downscaled to standard 576 lines resolution. Using the HDMI connection available on your Blu-ray disc player will definitely improve your HD experience.

  • Make sure that the image settings of your TV set are correctly set. It may be possible that the factory video settings are not suitable to your room (light conditions, etc.). Refer to the user manual of your TV set to correctly adjust the image settings of your TV set to achieve a cleaner and more accurate, with the best possible contrast and gray-scale tracking.

  • Some high end TV sets have a picture improvement engine that can soften a noisy image. Make sure that it is activated from the setup menu of your TV set. Please refer to the instruction manual of your TV set.

  • As with standards DVD's, some Blu-ray discs are poorly encoded. If the picture is perfect with another Blu-ray disc, your hardware is not faulty.

  • If people and objects have weird white outlines around them. This may have two different causes:

    1. This may suggest that your TV sharpness is set too high. Make the correct sharpness adjustments from the setup menu of your TV set.

    2. Your TV is using some edge enhancement processing that is generally unnecessary for high definition signals. Please refer to the instruction manual of your TV set.



  • Use the shortest possible cables. Long cables are more sensitive to interferences.

  • Image flickers, or frames are dropped: this phenomenon is known as “Judder”. Movies are originally shot at 24 frames per seconds. However, in Europe, refresh rates of TV are 50Hz or multiple of 25 as the European PAL system specifications are 25 frames per second. Therefore when a 24fps signal is sent to a TV set with 50Hz refresh rate, this may result in this effect called judder. This is normal and within the technology specifications. This effect also exists for standard DVD's but may be more visible due to the fact that TV displays are getting larger and larger.

The image is generated from a TV broadcast.
  • If you did not subscribe to a High Definition TV provider, the signal is standard definition. Remember that an HD TV set will make the default of a picture worse than on a standard defintion TV set. Make sure that the TV broadcast is top quality. However, some high end TV sets have a picture improvement engine that can improve a poor image. Make sure that it is activated from the setup menu of your TV set. Please refer to the instruction manual of your TV set.

  • If you have an HD broadcast subscription, side effects of digital television signal compression may result in artifacts (or distortion), such as "pixels" surrounding fast moving objects. This should be greatly reduced in the next years as compression technology improves.

  • If blocks of pixels sometimes appear on the picture, or the picture freezes for a few seconds and then it goes back to normal, this suggest that the digital TV signal is not strong enough. Move the antenna (if aerial DTV), or contact your digital TV provider to boost the video signal.

The image is generated from a DivX or Xvid.
DivX is often a lossy compression format resulting in video quality alteration. Viewing DivX files always results in poor image quality.
No image: the screen remains black.

  • The TV input is not correct: make sure that you did not push the wrong input button on the remote control of your TV set.

  • Make sure that the output signal is compatible with the input of your TV set. If your player is set to output a 1080p signal, make sure that your TV set can support 1080p signals. If not set your player to a compatible signal (720p or 1080i).

  • Cables are not correctly connected: please check again that all the cables are firmly connected at the back of your devices.

  • Cables are of very low quality or damaged. Also make sure that your cables are not too long. If your cable is more than 5 meters long, the signal may be altered.

No sound, but good picture.
  • Press Sony or +/- or Sony (Mute) on the remote control.
  • Check if the “Speaker” is set to “TV speaker” in the “Set-up” menu.
  • When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (OPTICAL) may not output audio signals.
  • If your media is encoded with sound formats that are not recognized by your player or AV receiver, this may result in no sound at all. Make sure that your hardware devices are compatible with the sound format you want to playback.
  • All movies are not encoded with the same sound formats by default. Some movies are available with one single sound format (usually Dolby Digital) while others have different various formats available. Check on the cover of your media to make sure your hardware device can play your movie.

Distorted picture and/or sound.
  • Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.
  • When installing optional equipment, leave some space between the optional equipment and the TV.
  • Check the aerial/cable connection.
  • Keep the aerial/cable TV cable away from other connecting cables.
The desired channel cannot be selected.
  • Switch between digital and analogue mode and select the desired digital/analogue channel.
Some channels are blank.
  • Scrambled/Subscription only channel. Subscribe to the pay TV service.
  • Channel is used only for data (no picture or sound).
  • Contact the broadcaster for transmission details.
Digital channels are not displayed.
  • Contact a local installer to find out if digital transmissions are provided in your area.
  • Upgrade to a higher gain aerial.
A channel cannot be added to the Favourite list.
  • Up to 999 channels can be stored in the favourite list.
Not all channels are tuned.
  • Any functions related to Digital TV (Sony) will only work in countries or areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG2 and MPEG4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.
  • The cable provider may charge an additional fee for such a service and you may be required to agree to their terms and conditions of business.
  • Although this TV set follows DVB-T and DVB-C specifications, compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
  • Some Digital TV functions may not be available in some countries/regions and DVB-C cable may not operate correctly with all providers.

Also you can try to perform again the channel tuning on your television:

  1. On your Remote Control, please press the HOME button.

  2. Select Settings Menu.

  3. Select (Analogue or Digital) Set-up Menu.

  4. Select Auto-tuning and press Sony.

    Sony

  5. Press Sony to select “Antenna” or “Cable”, then press Sony.


    If you select “Cable”, the screen for selecting the scan type appears:

    1. Press Sonyto select “Scan Type”, then press Sony.

    2. Press Sonyto select “Quick Scan” or “Full Scan”, then press Sony.

      Quick Scan: Channels are tuned according to the cable provider’s information within the broadcast signal. The recommended setting for “Frequency”, “Network ID” and “Symbol Rate” is “Auto” unless your cable provider has supplied actual values to use. “Quick Scan” is recommended for fast tuning when this is supported by your cable provider.

      Full Scan: All available channels are tuned and stored. This procedure may take some time. This option is recommended when “Quick Scan” is not supported by your cable provider.

    3. Press Sonyto select “Scan Type”, then press Sony.
      The TV starts searching for channels. Do not press any buttons on the TV or remote.




    The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, so do not press any buttons on the TV or remote while proceeding.

    If a message appears for you to confirm the aerial connection:

    No digital or analogue channels were found. Check all the aerial connections and press Sony to start auto tuning again.


The TV turns off automatically (the TV enters standby mode).
  • Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer Settings”.
  • If no signal is received and no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
The TV turns on automatically.
  • Check if the “On Timer” * is activated.

* The option might not be available depending of your TV model.

Some input sources cannot be selected.
  • Select “AV Preset” and cancel “Skip” of the input source.
The remote does not function.
  • Replace the battery. If replacing the batteries does not solve the problem, please contact Sony.
HDMI equipment does not appear on “HDMI Device List”.
  • Check that your equipment is “Control for HDMI” compatible equipment.
You cannot select “Off” in “Control for HDMI”.
  • If any “Control for HDMI” compatible audio equipment is connected to the TV, you cannot select “Off” in this menu. If you want to change the audio output to the TV speaker, select “TV Speaker” in the “Speaker”menu.
The player is slow to respond.
It may take a few seconds after you press a button on your player or the remote control of the player before the task is executed. This is normal and not a malfunction.
I cannot manage to connect my audio and video devices together.
The player does not detect the disc.
  • Please make sure that your hardware device is compatible with disc formats. As with standard DVD's, Blu-ray discs are region coded. The Blu-ray movie region codes are different from the DVD region codes.

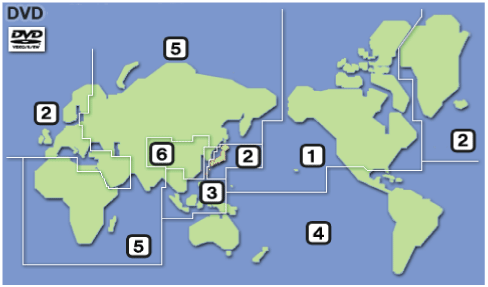

  • DVD Region codes

    Region code Area
    1 Canada, the United States and U.S. territories
    2 Japan, Europe, South Africa, the Middle East (including Egypt) and Greenland.
    3 Southeast Asia, and East Asia (including Hong Kong).
    4 Australia, New Zealand, the Pacific Islands, Central America, Mexico, South America, and the Caribbean.
    5 Eastern Europe, Russia, the Indian Subcontinent, Africa, North Korea, and Mongolia.


    Sony

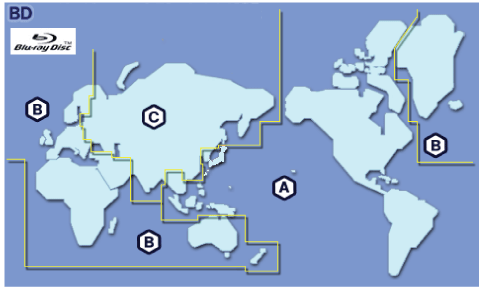

  • Blu-ray Disc region codes

    Region code Area
    A North America, South America, U.S. Territories, Japan, South Korea, Taiwan, and other areas of Southeast
    B Europe, Africa, Middle East, Australia, and New Zealand
    C Asia (except for Japan, Korea, Taiwan, and other areas of Southeast Asia)


    Sony


If the solutions listed above fail to resolve the issue, please contact Sony.
