| SPECIFICATIONS | HVR-Z5N / Z5P |
| Camera section | |
| Lens | Sony G Lens, 20x (optical), f = 4.1 to 82mm, f = 29.5 to 590 mm at 16:9 mode, f = 36.1 to 722 mm at 4:3 mode, fi lter diameter: 72mm |
| Built-in filter | Clear, 1/4, 1/16, 1/64 |
| Imaging system | 1/3-inch, progressive 3 ClearVid CMOS Sensor system with technology of Exmor |
| Picture elements | Approx. 1,037,000 pixels (effective), approx. 1,120,000 pixels (total) |
| Focus | Auto,manual (focus ring/one push auto/infinity/AF assist/ focus macro) |
| White balance | Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx. 500K/step), manual WB Temp (selectable 2300K to 15000K, 100K/step) |
| Manual shutter speed | Auto 1/50 - 1/2000 Manual 1/4 - 1/10000 |
| Gain | -6, -3, 0 , 3, 6, 9, 12, 15, 18, 21 dB |
| Minimum illumination | 1.5 lux (auto gain, auto iris, 1/25 shutter) |
| VTR section | |
| Recording format | HDV1080/50i, DVCAM, DV SP 576/50i (PAL) |
| Play out / Down conversation format | HDV1080/50i, DVCAM, DV SP 576/50i (PAL) |
| Playback / Recording time | HDV/DV SP Max. 63 min with PHDVM-63DM cassette DVCAM Max. 41 min with PHDVM-63DM cassette |
| Input / Output connection | |
| Audio / Video output | 10-pin connector A/V OUT jack (composite, unbalanced audio x2ch with the supplied cable) |
| HDV / DV input / output | i.LINK interface (IEEE 1394, 4-pin) |
| XLR audio input | XLR 3-pin female x 2ch |
| Headphones | Stereo mini jack (ø3.5 mm) |
| LANC | Stereo mini-mini jack (Φ2.5 mm) |
| Digital video output | HDMI connector |
| Built-in output devices | |
| LCD view finder | 0.45-inch type (Viewable area measured diagonally), approx. 1,226,880 dots (852x3[RGB]x480), 16:9 aspect ratio |
| LCD monitor | 3.2-inch type (Viewable area measured diagonally), XtraFine LCD, approx. 921,600 dots, hybrid type, 16:9 aspect ratio |
| General | |
| Mass | Approx. 2.2 kg (5 lb 1 oz) (w/o tape, battery) |
| Dimension (W x H x D) | Approx.169 x 188 x 451mm (6 3/4 x 7 1/2 x 17 7/8inch) (with lens hood, microphone and large eye cup) |
| Power requirements | DC 7.2 V (battery pack), DC 8.4 V (AC adaptor) |
| Power cosumption | HDV Approx. 7.1 W (with ECM-XM1 / LCD viewfi nder ON) DVCAM / DV Approx. 6.8 W (with ECM-XM1 / LCD viewfi nder ON) |
| Battery operating time | HDV 395min(NP-970) DVCAM / DV 415min(NP-970) |
| Operation temperature | (0 to 40 °C) 32 to 104 °F |
| Storage temperature | -20 to +60 °C (-4 to 140 °F) |
| Supplied accessories | AC-VQ1050 AC adaptor/charger, NP-F570 infoLITHIUM rechargeable battery pack, A/V multi-connecting cable, Component A/V cable, lens hood with lens cover, lithium battery (CR2025), shoe adaptor, large size eye-cup, RMT-831 wireless Remote Commander, ECM-XM1 monaural electret condenser microphone, operating instructions (CD-ROM), printed operating instructions |

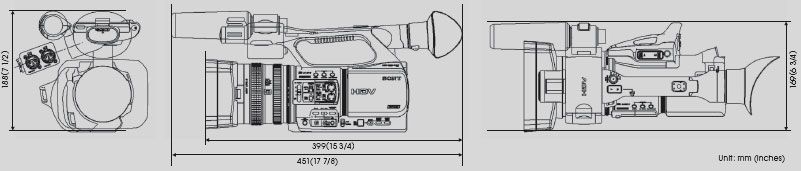

| Detailed specifications unit: mm (inches) |
 |
